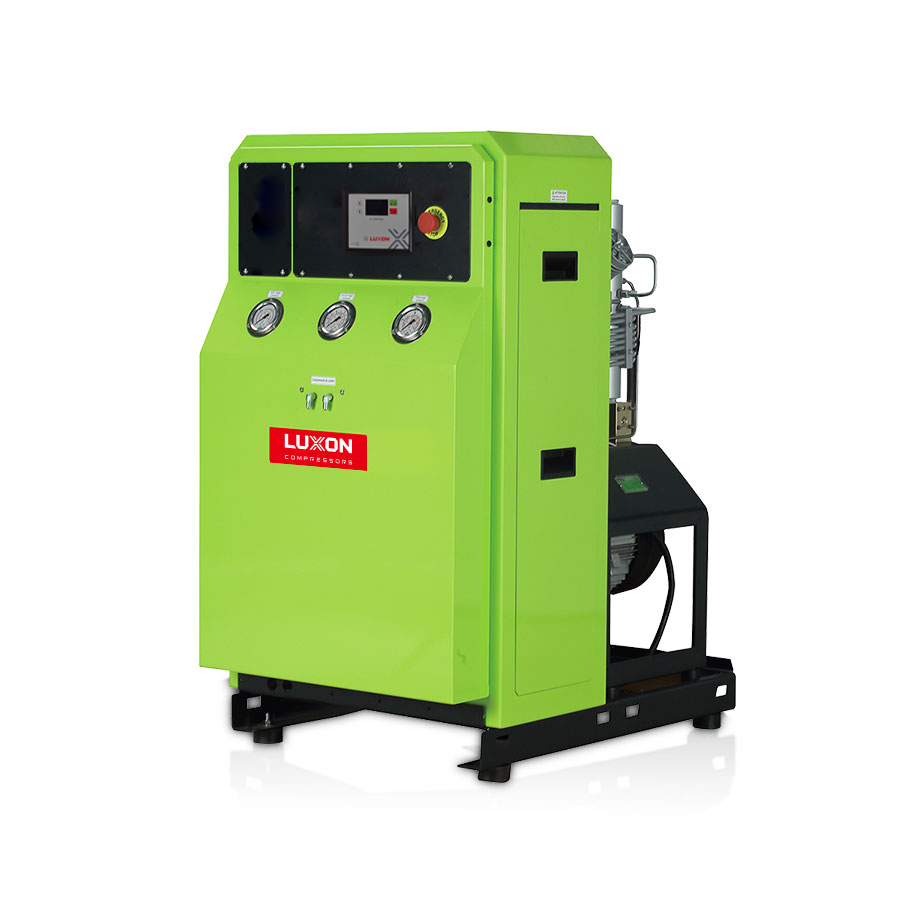

GMC D300/T4.0/T5.5/T7.5
Overview
Control Gas-Filling Sation
Gas-filling station GMC D300/T4.0/T5.5/T7.5 is designed for those that have large charging requirements such as the fire fighting unit .
This series possess perfect protection for the operator .It also has automatic functions that will further convenience the user. lts silent
design effectively blocks out noise and can be installed indoor . It is applicable for use in a range of industries including: Fire fighting
industry, Chemical industry, Mining ，Diving service station and other industries with demands for higher usage .
Specification
Vertical box design
Highly effective 3-cylinder ， 3-stage compressor
Each stage with safety valve
Three Phase Electric Motor
Pressure gauge on the panel show each
cylinder's pressure
Autodrain condensation with collection bin
Active carbon molecular sieve triple filtration system
Auto-unload when stop
Aluminum and stainless steel interstage condenser pipe
Interstage oil-water separator and autodrain condensation
Autostop when over maximum pressure
Main power breaker/Hour meter/Temperature pressure
controller on the panel
Control panel integrated start/stop/emergency stop/manual
drain test button
Steering and oil level warning lights on panel
Two high pressure hoses with venting function G5/8
interface filling valve
Breathing air conforms to the EN12021Standards
| Standard Configuration | Quantity | Available Option | Quantity |
| High pressure hose -12*1200 | 2 | Transform adaptor | 1 |
| Filling Valve | 2 | DIN/INT Adaptor | 1 |
| 750 Lubricating oil | 2L | Filling valve with pressure gauge | 1 |
| Activated carbon cartridge | 1 | FLS/1200-T | 1 |
| Intake filter -65*68 | 1 | ||
Tool kit zipper pouch ( with 1 collapsible filing funnel and 1 wrench) | 1 | Industrial Plug FOGO 024116 | 1 |
| Oil discharge hose | 1 | Industrial Socket FOGO 324126 | 1 |
| β controller | 1 | α controller | 1 |
Parameters
Type Number | GMC D300/T4.0/T5.5/T7.5 |
Booking Number | Please contact our sales |
Capacity （L/min） | 215/265/300 |
Power （kW） | 4.0/5.5/7.5 |
Drive | Three phase electric motor |
Rotation （RPM） | 1180/1400/1650 |
Weight （kg） | 205/215/220 |
Volume（L*W*H） | 682*1005*1210mm |
Number of compressor stage | 3 |
Fuel Quantity （L） | 2 |
Noise Level （dB） | ≤85 |
Compressible medium | Air |
Breathing air standard | EN12021 |
Max Pressure （bar） | 330 |
Filling time （min） | 0.67 min.(Filling time of 1-liter cylinder from 0 to 200 bar at capacity 300L/min ) 0.75 min (Filling time of 1-liter cylinder from 0 to 200 bar at capacity 265L/min ) 0.93 min (Filling time of 1-liter cylinder from 0 to 200 bar at capacity 215L/min ) |
